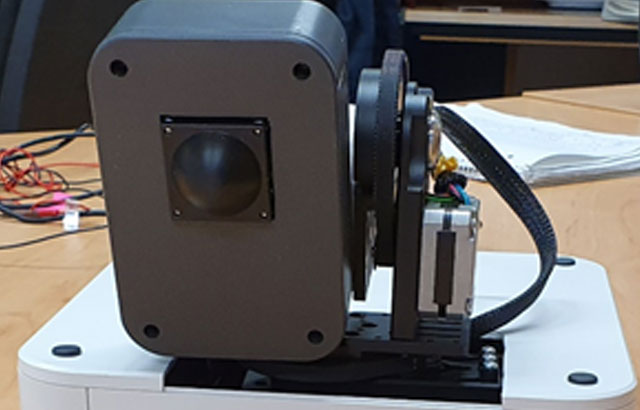

120 GHz 3D Surveillance Sensor

The TES 120 GHz Fix Beam Sensor Module is a radar based sensor module working in the 120 GHz ISM narrow band. The radar module provides a high precision measurement for various application scenarios The module is ready made for your application including the antenna, the RF the Signal Processing and is accessable via a Serial Control Interface. The Signal Processing section is divided into a TES specific block comprising the implemented signal processing algorithms and the control SW and an Application SW partition which is easily accesable by customers and allows an adjustement to the application  requirements.

It is based on the Frequency Modulated Continous Wave (FMCW) and Contious Wave (CW) Radar Technology and a 32-bit ARM Cortex-M7 MCU for the Digital Signal Processing (DSP) algorithms.It can be easily integrated into the customer’s system because of a very thin compact form factor of 4cm x 4cm, various serial interface options and an Application Software API which enables customers to adjust and enhance the Signal Processing Software to their application specific requirements.

Application Examples:

  • Surveillance Detector for Industry
  • Construction
  • Machines
  • Robots
  • Security
  • Medical Home
  • Automotive
  • Trucks
  • Obstacle detector
  • vehicle in cabin
  • underbody
  • surround applications
  • automatic door opening system
  • detection of intruders
  • security surveillance applications
  • robot driven vehicles
  • Speed measurement
  • counting
  • presence detection
  • traffic monitoring
  • Parking sensor
  • distance control
  • distance measurement
